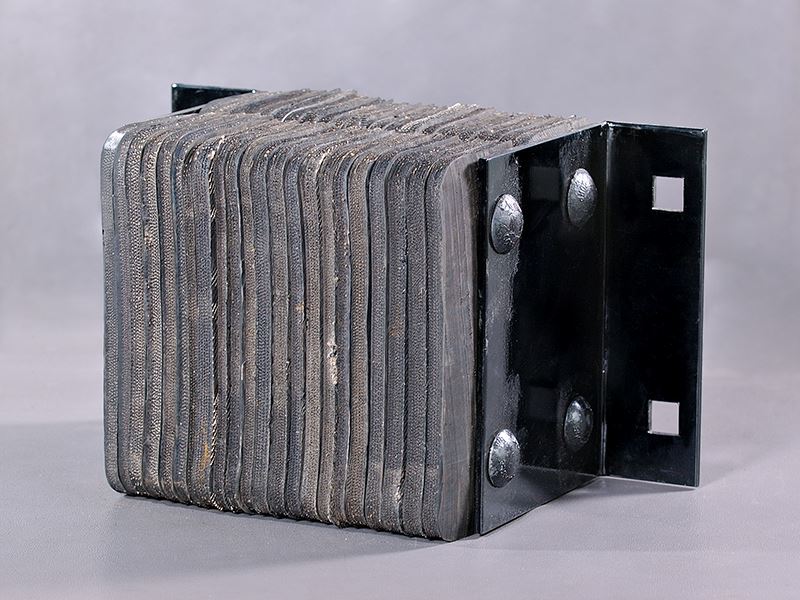

Extra-Thick Loading Dock Bumpers

Ideal for declined approaches where more “stand-out” distance from the loading dock is needed.

Uses/Applications:

  • Ideal where greater standout distance from the dock is needed
  • Used with steep ramps, canopied docks, overhangs, or other architectural features
  • The special construction features to accommodate unusual anchoring conditions

Features:

  • Protects dock seals from over-compression

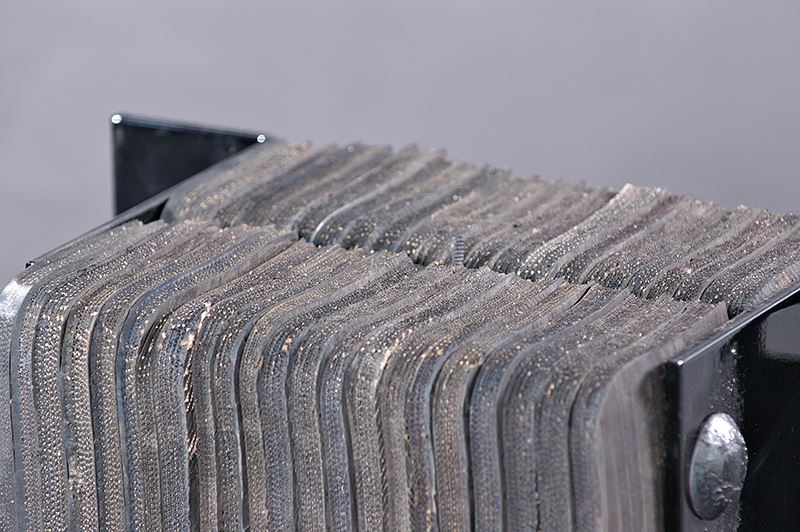

  • Tough piles of truck tire material reduce chipping or abrasion, unlike molded rubber, extruded rubber, conveyor belting or wood plank bumpers
  • Attractive deep black color enhances a neat, professional architectural look
  • Manufactured under pressure exceeding 1,500 lbs. to absorb over 80% of impact force
  • Anchor bolts protected by at least 3" of rubber to prevent damage
  • Maintenance-free

Material:

  • 80% recycled material from fabric reinforced rubber pads cut from selected recycled truck tires

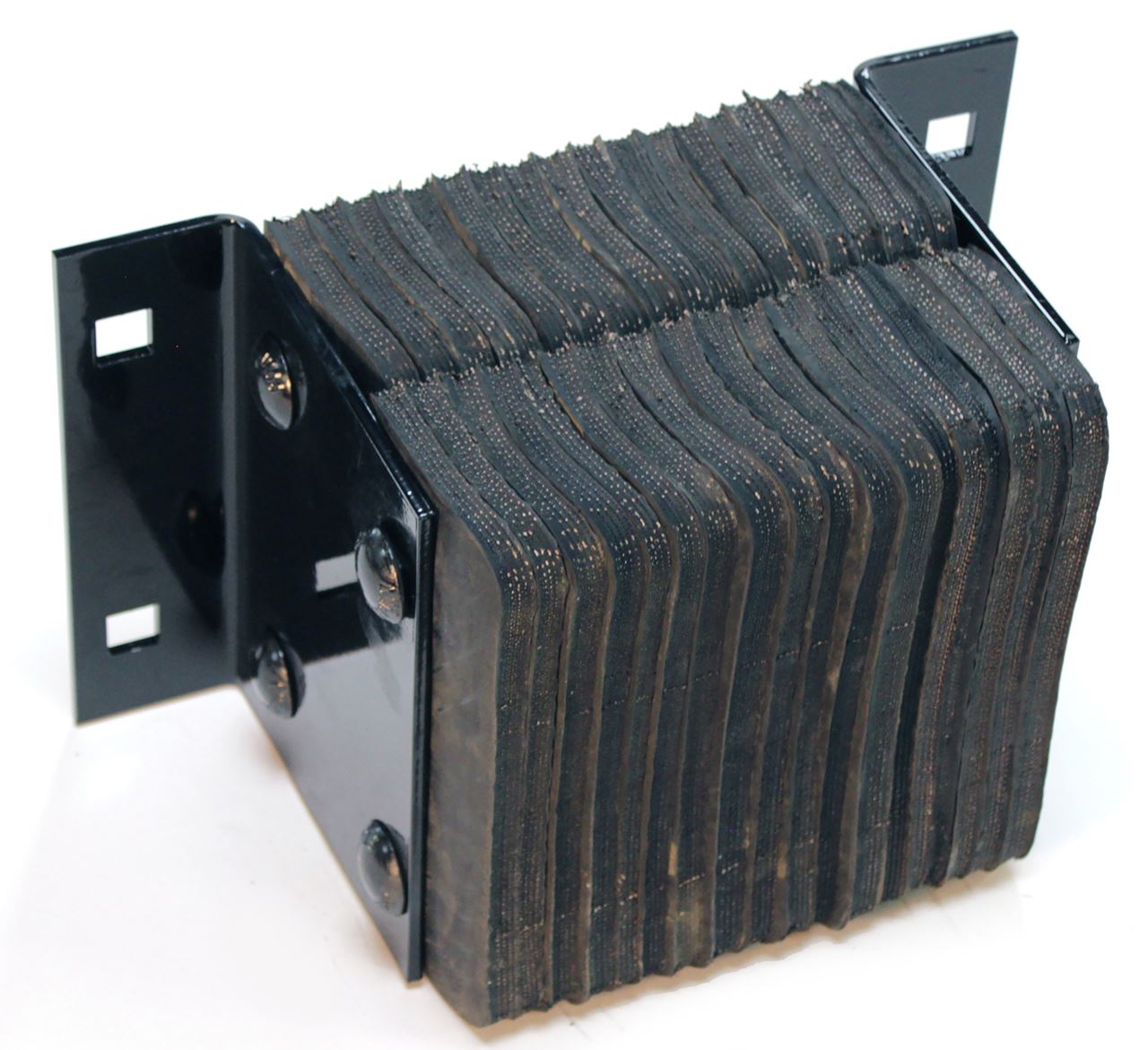

  • Rubber pads laminated between structural steel angles and secured with 3/4" steel tie rods
  • Available in 9”, 10-1/2” and 12” projections

Installation:

  • Structural mounting angles permit welded installations or provide bolting through steel
  • No assembly required

Note:

  • Refer to stand-out distance planner to choose proper thickness for incline docks
  • Extra-thick bumpers are not warrantied due to specialty applications where they are used

Large Arcat Logo


Need Help?

Call Us! 1.800.537.1603 or contact us

Dealers can register online to order, or you can locate a dealer near you.

Item Drawing Description Width Height Length Weight Price How to Order
Picture of BUMPER 8" X 10" X 14"
B810-14
BUMPER 8" X 10" X 14"
8.0000 10.0000 14.0000 63.0000
$222.60
Picture of BUMPER 8" X 10" X 14" PLATE 1 SIDE
B810-14-P1
BUMPER 8" X 10" X 14" PLATE 1 SIDE
8.0000 10.0000 14.0000 63.0000
$222.60
Picture of BUMPER 8" X 10" X 24"
B810-24
BUMPER 8" X 10" X 24"
8.0000 10.0000 24.0000 98.0000
$303.40
B810-24-P1
BUMPER 8" X 10" X 24" PLATE 1 SIDE
8.0000 10.0000 24.0000 98.0000
$303.40
B810-36-A3
BUMPER 8" X 10" X 36" ANCHOR DEVICE #3
8.0000 10.0000 36.0000 152.0000
$435.60
B810-36-A3P1
BUMPER 8" X 10" X 36" PLATE 1 SIDE ANCHOR DEVICE #3
8.0000 10.0000 36.0000 152.0000
$330.00
Picture of BUMPER 8" X 20" X 11"
B820-11
BUMPER 8" X 20" X 11"
8.0000 20.0000 11.0000 103.0000
$400.80
B820-11-P1
BUMPER 8" X 20" X 11" PLATE 1 SIDE
8.0000 20.0000 11.0000 103.0000
$400.80
Picture of BUMPER 9" X 10" X 14"
B910-14
BUMPER 9" X 10" X 14"
9.0000 10.0000 14.0000 63.0000
$222.60
Picture of BUMPER 9" X 10" X 14" PLATE 1 SIDE
B910-14-P1
BUMPER 9" X 10" X 14" PLATE 1 SIDE
9.0000 10.0000 14.0000 63.0000
$222.60
Picture of BUMPER 9" X 10" X 24"
B910-24
BUMPER 9" X 10" X 24"
9.0000 10.0000 24.0000 98.0000
$303.30
B910-24-P1
BUMPER 9" X 10" X 24" PLATE 1 SIDE
9.0000 10.0000 24.0000 98.0000
$303.30
B910-36-A3
BUMPER 9" X 10" X 36" ANCHOR DEVICE #3
9.0000 10.0000 36.0000 152.0000
$435.30
B910-36-A3P1
BUMPER 9" X 10" X 36" ANCHOR DEVICE #3 PLATE 1 SIDE
9.0000 10.0000 36.0000 152.0000
$435.30
Picture of BUMPER 9" X 20" X 11"
B920-11
BUMPER 9" X 20" X 11"
9.0000 20.0000 11.0000 103.0000
$400.80
B920-11-P1
BUMPER 9" X 20" X 11" PLATE 1 SIDE
9.0000 20.0000 11.0000 103.0000
$400.80
Picture of BUMPER 10 1/2" X 10" X 14"
B10510-14
BUMPER 10 1/2" X 10" X 14"
10.5000 10.0000 14.0000 71.0000
$285.60
B10510-14-P1
BUMPER 10 1/2" X 10" X 14" PLATE 1 SIDE
10.5000 10.0000 14.0000 71.0000
$285.60
B10510-24
BUMPER 10 1/2" X 10" X 24"
10.5000 10.0000 24.0000 109.0000
$368.70
B10510-24-P1
BUMPER 10 1/2" X 10" X 24" PLATE 1 SIDE
10.5000 10.0000 24.0000 109.0000
$368.70
B10510-36-A3
BUMPER 10 1/2" X 10" X 36" W/ANCHOR DEVICE #3
10.5000 10.0000 36.0000 167.0000
$509.00
B10510-36-A3P1
BUMPER 10 1/2" X 10" X 36" W/ANCHOR DEVICE #3 PLATE 1 SIDE
10.5000 10.0000 36.0000 167.0000
$509.00
B10520-11
BUMPER 10 1/2" X 20" X 11"
10.5000 20.0000 11.0000 109.0000
$480.70
B10520-11-P1
BUMPER 10 1/2" X 20" X 11" PLATE 1 SIDE
10.5000 20.0000 11.0000 109.0000
$480.70
B1210-14
BUMPER 12" X 10" X 14"
12.0000 10.0000 14.0000 76.0000
$308.40
B1210-14-P1
BUMPER 12" X 10" X 14" PLATE 1 SIDE
12.0000 10.0000 14.0000 76.0000
$308.40
B1210-24
BUMPER 12" X 10" X 24"
12.0000 10.0000 24.0000 120.0000
$410.00
B1210-24-P1
BUMPER 12" X 10" X 24" PLATE 1 SIDE
12.0000 10.0000 24.0000 120.0000
$410.20
B1210-36-A3
BUMPER 12" X 10" X 36" W/ANCHOR DEVICE #3
12.0000 10.0000 36.0000 195.0000
$568.50
B1210-36-A3P1
BUMPER 12" X 10" X 36" W/ANCHOR DEVICE #3 PLATE 1 SIDE
12.0000 10.0000 36.0000 195.0000
$431.00
Picture of BUMPER 12" X 20" X 11"
B1220-11
BUMPER 12" X 20" X 11"
12.0000 20.0000 11.0000 134.0000
$516.40
B1220-11-P1
BUMPER 12" X 20" X 11" PLATE 1 SIDE
12.0000 20.0000 11.0000 134.0000
$516.40
